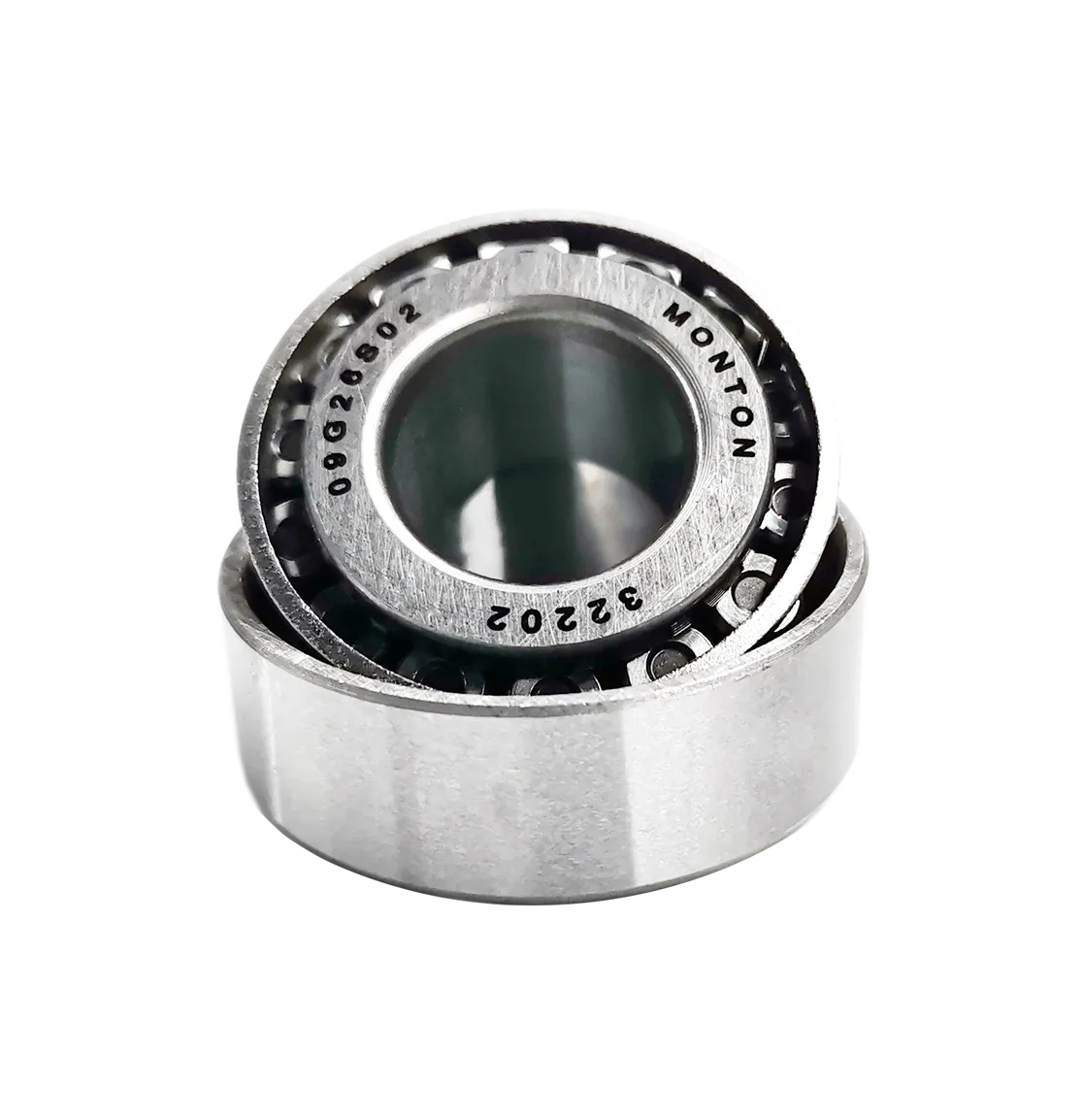

RV减速机轴承
|
轴承型号 |
d(mm) |
D(mm) |
T(mm) |
B(mm) |
C(mm) |
Cr(kN) |
Cor(kN) |
接触角 |
|
71811B |
55 |
72 |
9 |
9 |
9 |
11.8 |
11.8 |
40° |
|
71813B |
65 |
85 |
10 |
10 |
10 |
15.2 |
15.8 |
40° |
|
718/70B |
70 |
90 |
10 |
10.45 |
7 |
15.9 |
17.2 |
40° |
|
718/70BX2B |
70 |
90 |
10 |
9.5 |
7 |
15.9 |
17.2 |
40° |
|
71816B |
80 |
100 |
10 |
10 |
10 |
16.2 |
18.5 |
40° |
|
718/85BX2B |
85 |
110 |
13 |
12.5 |
9 |
22.2 |
24.5 |
40° |
|
718/88.9BX1 |
88.9 |
114.1 |
13.1 |
10 |
9 |
22.2 |
24.5 |
40° |
|
718/89B |
89 |
114 |
13 |
10 |
9 |
22.2 |
24.5 |
40° |
|
718/97B |
97 |
120 |
12.95 |
13.5 |
10 |
19 |
22.1 |
40° |
|
718/115B |
115 |
145 |
15 |
15.05 |
11 |
31.4 |
37.3 |
40° |
|
718/115BX2B |
115 |
145 |
15 |
14.05 |
11 |
31.4 |
37.3 |
40° |
|
718/129B |
129 |
153 |
14 |
14.3 |
10.5 |
26.5 |
36.1 |
40° |
|
718/130BX2B |
130 |
165 |
15 |
13.9 |
11 |
41.8 |
50.8 |
40° |
|
718/143.5B |
143.5 |
174 |
15 |
15 |
12 |
41.2 |
55 |
40° |
|
718/144B |
144 |
174 |
15 |
15 |
12 |
41.2 |
55 |
40° |
|
718/144BX2B |
144 |
174 |
15 |
14.5 |
12 |
41.2 |
55 |
40° |
|
718/159B |
159 |
191 |
16 |
16 |
12 |
42.5 |
59.8 |
40° |
|
718/168B |
168 |
205 |
20 |
20 |
16 |
49.7 |
66.4 |
40° |
|
718/186B |
186 |
230 |
21 |
21.1 |
17 |
66.8 |
94.1 |
40° |
|
718/230BX2B |
230 |
290 |
26 |
25 |
20 |
116.2 |
179.9 |
40° |
|
718/244B |
244 |
299 |
27 |
27.2 |
22 |
118.9 |
190.3 |
40° |
|
718/244X2D |
244 |
299 |
27 |
27.5 |
16.2 |
104.3 |
153.3 |
40° |
|
718/255D |
255 |
310 |
27 |
27.7 |
20.2 |
90.8 |
137 |
40° |
|
718/320B |
320 |
395 |
35 |
35 |
29 |
200.2 |
304.3 |
40° |
|
718/355B |
355 |
435 |
40 |
40.3 |
33 |
219.3 |
351.4 |
40° |
|
719/130 9BX1 |
130.9 |
165.1 |
15.1 |
14 |
11 |
41.8 |
50.8 |
40° |
|
719/131B |
131 |
165 |
15 |
14 |
11 |
41.8 |
50.8 |
40° |
|
719/210A |
210 |
280 |
35 |
28 |
28 |
174.3 |
225.4 |
40° |
|
719/250A |
250 |
360 |
44 |
36 |
33 |
319.7 |
468.2 |
40° |
|
719/280AC |
280 |
400 |
48 |
39 |
39 |
344.2 |
537.9 |
40° |
|
HS05113 |
87 |
113 |
14 |
14 |
9 |
22.3 |
24.6 |
40° |
|
HS05145 |
117 |
145 |
14 |
14 |
11 |
31.5 |
37.4 |
40° |
|
HS05153 |
129 |
153 |
14.3 |
14.3 |
10.5 |
26.5 |
36.1 |
40° |
|
HS05165 |
128 |
165 |
15.8 |
16 |
13.7 |
42 |
51 |
40° |
|
HS05191 |
159 |
191 |
16.5 |
16.8 |
12.5 |
42.5 |
59.8 |
40° |
|
HS05205X2D |
168 |
205 |
20 |
19 |
15.4 |
49.7 |
66.4 |
40° |
|
HS05214 |
182 |
214 |
17.4 |
17.4 |
15.4 |
43.4 |
64.5 |
40° |
|
HS05260 |
208 |
260 |
23.3 |
23.3 |
17.8 |
93.9 |
131.1 |
40° |
|
HS05290 |
230 |
290 |
26 |
26 |
20 |
104 |
150.7 |
40° |
|
ZR76/114 |
89 |
114 |
13 |
10 |
9 |
22.2 |
24.5 |
40° |
|
ZR76/145A |
115 |
145 |
15 |
15 |
11 |
31.4 |
37.3 |
40° |
|
ZR76/174A |
144 |
174 |
15 |
15 |
12 |
41.2 |
55 |
40° |
|
ZR76/250 |
200 |
250 |
24 |
23 |
20.5 |
93.3 |
128 |
40° |
|
ZR76/260 |
208 |
260 |
23 |
23.2 |
17.8 |
93.9 |
131.1 |
40° |
|
ZR76/330 |
274 |
330 |
30 |
30.5 |
20 |
102.8 |
165.4 |
40° |
|
ZR76/383 |
320 |
383 |
30 |
29.8 |
22.7 |
131.8 |
220.1 |
40° |
|
ZR76/395 |
320 |
395 |
35 |
34.8 |
27 |
187 |
326.5 |
40° |
|
RV50C |
159 |
191 |
16 |
16.4 |
12.4 |
42.5 |
59.8 |
40° |
|
RV100C |
182 |
214 |
17 |
17.4 |
15 |
43.4 |
64.5 |
40° |
|
RV110E |
144 |
174 |
15 |
15.2 |
11.7 |
41.2 |
55 |
40° |
|
718/120A |
97 |
120 |
13 |
13.5 |
9.9 |
19 |
22.1 |
40° |
|
718/260B |
208 |
260 |
23 |
23.3 |
17.8 |
93.9 |
131.1 |
40° |
|
718/120 |
97 |
120 |
13.5 |
13.5 |
10 |
19 |
22.1 |
40° |
|
718/129 |
107 |
129 |
11.5 |
11.9 |
8.9 |
22.7 |
28.4 |
40° |
|
718/200 |
160 |
200 |
19.5 |
14 |
18 |
58 |
78 |
40° |
|
718/180 |
140 |
180 |
22 |
16 |
22 |
71.6 |
91.7 |
40° |
|
718/225 |
175 |
225 |
24 |
19 |
19 |
94.5 |
120 |
40° |
|
718/260A |
204 |
260 |
26 |
26.4 |
20.1 |
113 |
151 |
40° |
|
718/260 |
208 |
260 |
23 |
23.4 |
17.8 |
93.9 |
131.1 |
40° |
|
718/395 |
320 |
395 |
35 |
35 |
27 |
184 |
286.8 |
40° |
常见RV减速机角接触球轴承配置
减速机型号
轴承型号
轴承尺寸
额定载荷
接触角
Part Number
Bearing
Dimensions (mm)
Basic Load Rating
Contact
d
D
B
C
H
Cr (kN)
Cor (kN)
Angle
RV-20E
718/89BTN
89
114
10
9
13
14.6
26.2
40°
RV-40E
718/115BTN
115
145
15
11
15
27
33
40°
RV-80E
718/131BTN
131
165
13
11
15
29
55
40°
RV-110E
718/145BTN
145
175
15
15
16
68
34
40°
RV-160E
718/168EBTN
168
205
19
15.4
20
49
94
40°
RV-320E
71840X2BTN
200
250
23
20.5
24
83.9
115.8
40°
RV-10C
718/97BTN
97
120
13
12
13
22.7
26
40°
RV-50C
718/159BTN
159
191
16.4
12.4
16
36.2
50.9
40°
RV-120C
718/182BTN
182
214
17.5
15
17.5
40
58
40°
RV-320CA
718/320BTN
320
383
29.8
22.7
30
130.8
219.8
40°
RV减速机主轴专用高精密角接触球轴承一般为40°接触角的薄壁推力球轴承，成对使用，承载能力强，精度高，刚性高，运转平稳，几乎承受RV减速机全部外载荷，是主要的定位轴承，其结构特点和精度保证工业机器人工作定位精度高，振动小，减速比大的工况要求。RV减速机主轴角接触球轴承支承了整体单机的弯矩、扭矩，能够承受径向载荷和轴向载荷。MONTON生产的RV减速机主轴角接触球轴承具有高转速，低噪音，精度高，寿命长，启动扭矩小的特点，破轴承安装空间的限制，加大轴承的载荷，是工业机器人RV减速机首选主轴轴承。RV减速机主轴角接触球轴承主要应用于机器人、焊接变位台(翻转台)、数控机床、精密雷达驱动控制等要求空间小、速比大的精密传动行业。更多资料欢迎联系我们咨询！
